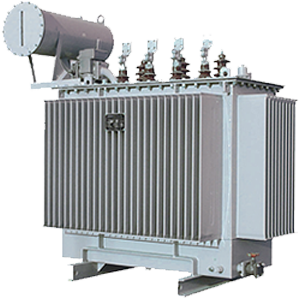

Distribution Transformer...

Description


We provide highly efficient Distribution Transformer to the clients. The Distribution Transformer is made using safe components that are procured from trusted vendors. We check the Distribution Transformer for its flawless efficiency and performance. Our Distribution Transformer is widely acclaimed for its long service life and less maintenance. The Distribution Transformer can be availed at pocket friendly prices from us.

Standard Fittings

  • Oil Filling Device
  • Drain Plug
  • Oil Level Indicator
  • Lifting Lugs
  • Earthing Terminal
  • Rating and Diagram Plate
  • Primary Bushings
  • Secondary Bushings

Optional Fittings

  • THV/LV Cable Box
  • Rollers (Uni / Bi Directional)
  • Drain valve for Capacities above 200kVA
  • Conservator and Silica gel Breather
  • Pressure Relief Device
  • Off circuit Tap Changer
  • On Load Tap Changer
  • Buchhloz Relay
  • Magnetic Type Oil Level Gauge
  • Oil /Winding Temperature Indicators
  • Marshalling Box

Technical Specifications

Ratings Upto Upto 1500 kVA
Type of Core CRGO
Number of Phase Three Phase
Applicable Standards IS, IEC, etc.
Cooling ONAN, ONAF
Insulating Fluid Mineral Oil as per Specification
Frequency 50Hz, 60 Hz
Vector Group Dyn-11 or as Specified
Primary Voltage Upto 33000V
Secondary Voltage 415,433V (Other voltages as required)
Winding Material Copper/Aluminium
Tapping Range 5% in steps of 2.5 % (Other Tapping as required)
Type of Tap Switch Off circuit and On-load tap Changer (as per Customer's Specification)
Impedance In line with applicable standards or as per Customer?s Specification
