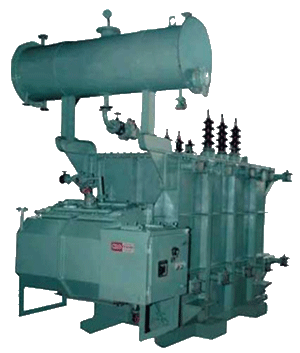

Power Transformer...

Description


We are actively engaged in providing Power Transformer to the clients. Made from cutting edge technology, the Power Transformer assures excellent performance and efficiency. The Power Transformer has sturdy construction and long lasting service. Our Power Transformer consumes less power and is made from reliable components that match up with industrial standards.

Standard Fittings

  • Lifting Lugs
  • Skid Base / Roller Arrangement
  • Rating and diagram plate
  • Primary Bushings
  • Secondary Bushings
  • Oil Level Gauge
  • Silica gel Breather
  • Drain/Filter valves
  • Thermometer
  • Pressure Relief Device / Explosion vent

Optional Fittings

  • Terminal Connectors
  • Magnetic Type Oil Level Gauge
  • Marshalling box
  • Buchhloz Relay
  • RTCC Panel
  • Off circuit Tap Switch / On load Tap Charger
  • Optic Fiber Sensor! Winding Temperature Indicator
  • Oil Temperature Indicator

Technical Specifications

Ratings Upto 10000 kVA
Type of Core CRGO
Number of Phase Three Phase
Applicable Standards IS, IEC, etc.
Cooling ONAN, ONAF
Insulating Fluid Mineral Oil as per Specification
Frequency 50Hz, 60 Hz
Vector Group Dyn-11 or as Specified
Primary Voltage Upto 33000V
Secondary Voltage 11000V 6600V 3300V (OtherVoltages as required)
Winding Material Copper
Tapping Range +5 % to -10 % in Step of 2.5 % (Other tapping as required)
Type of Tap Switch Off circuit and On-load tap Changer (as per Customer's Specification)
Impedance In line with applicable standards or as per Customer?s Specification
